Accessory for removing the tailstocks from the machine taper.
Not included in the standard kit.

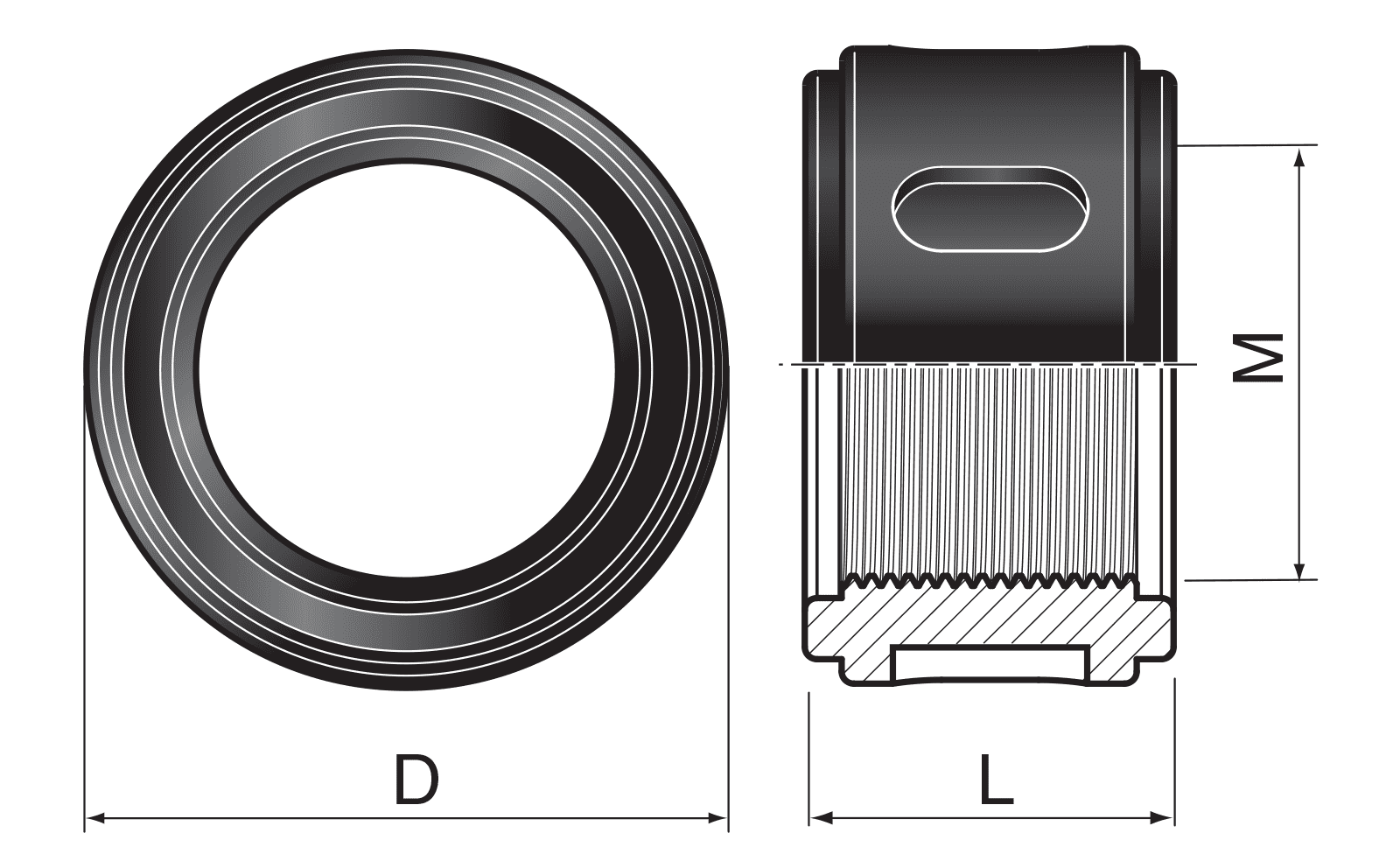

Extractor nut for Mazak
Codice / Code / Id.-Nr. | M mm | D mm | L mm | Peso kg | g mm |
|---|---|---|---|---|---|
005010M | 35 x 1,5 | 52 | 12 | 0,25 | 5 |
005011M | 40 x 1,5 | 58 | 14 | 0,35 | 6 |
005012M | 50 x 1,5 | 73 | 14 | 0,20 | 7 |
005013M | 70 x 2,0 | 96 | 18 | 0,50 | 8 |
Extractor nut. NOT supplied.
Codice / Code / Id.-Nr. | M mm | D mm | L mm | Peso kg |
|---|---|---|---|---|
005010 | 36 x 1,5 | 52 | 22 | 0,25 |
005011 | 48 x 1,5 | 73 | 22 | 0,35 |
005012 | 41 x 1,5 | 58 | 22 | 0,20 |
005013 | 68 x 1,5 | 96 | 22 | 0,50 |
005014 | 25 x 1,5 | 42 | 16 | 0,10 |
Taper and cover extractor nut
Codice / Code / Id.-Nr. | M mm | D mm | L mm | Peso Kg |
|---|---|---|---|---|
05022 | 36×1,5 | 52 | 30 | 0,35 |
05023 | 48×1,5 | 73 | 30 | 0,50 |
