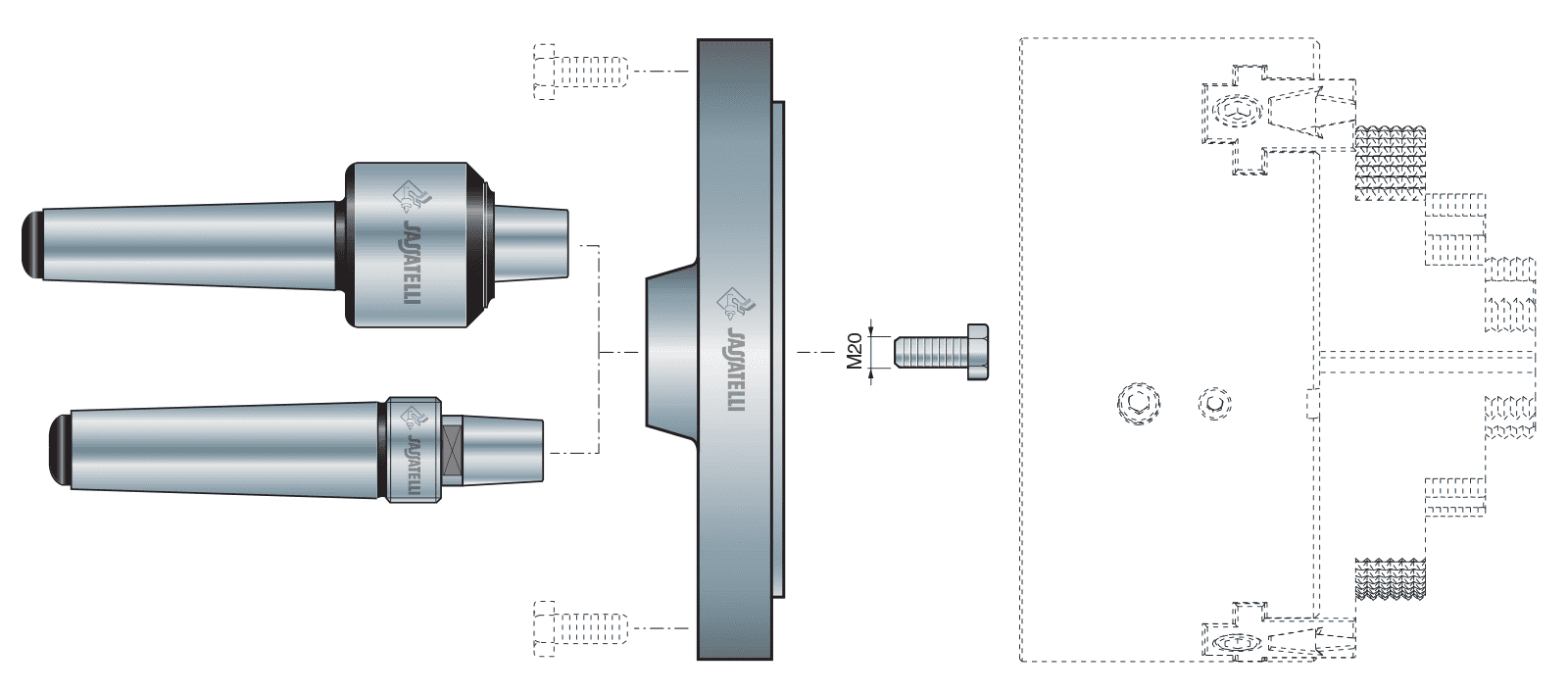

Flange for Din 6350 chuck coupling to be coupled to truncated cone dead or live centres. Anchoring by simply pressing of the head on the live centre. For working for pipes and hollow bodies from ø mm. 45 to ø mm. 600
Flange for Din 6350 chuck coupling to be coupled to truncated cone dead or live centres. Anchoring by simply pressing of the head on the live centre. For working of pipes and hollow bodies from ø mm. 45 to ø mm 600.

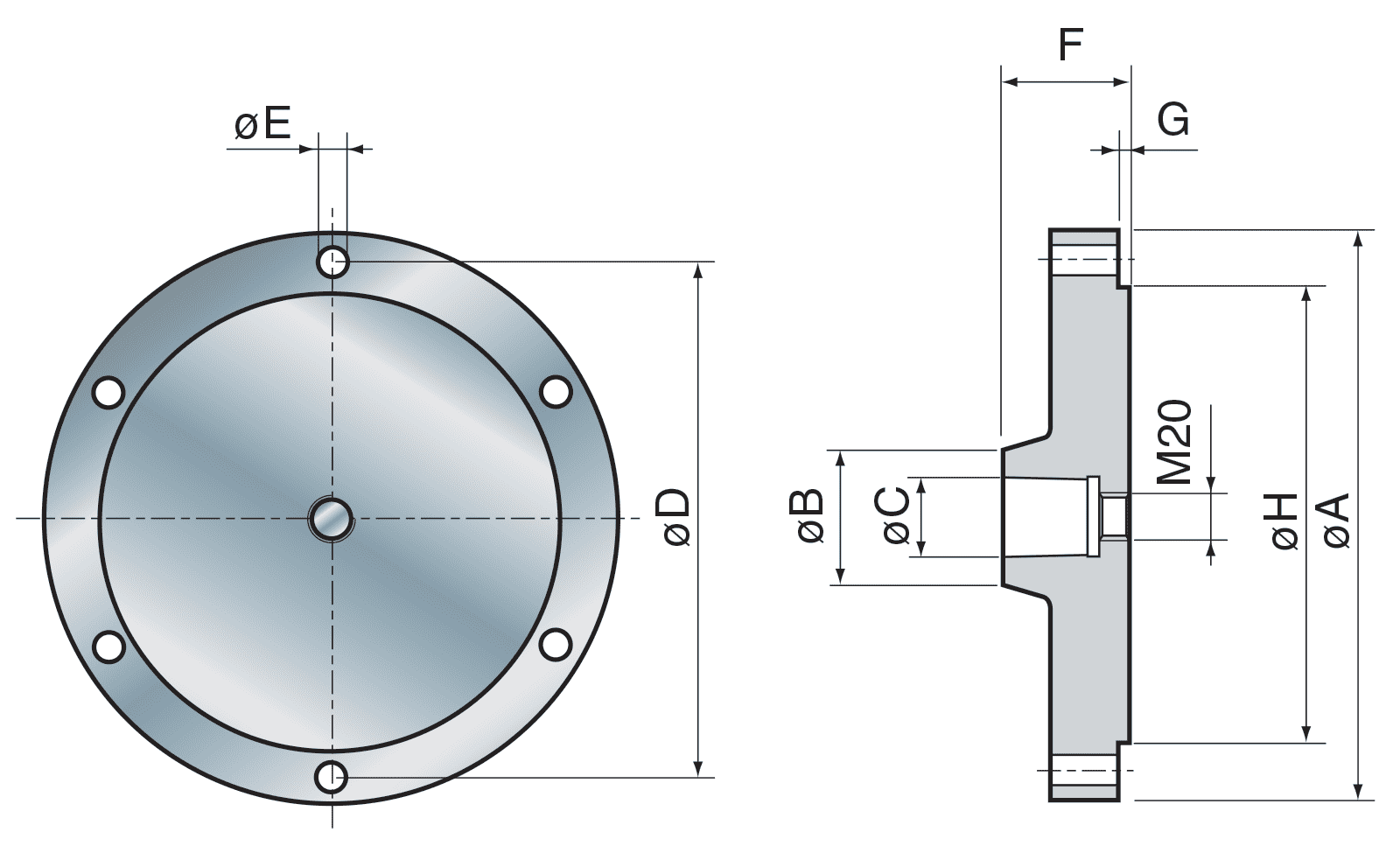

Codice Code Id.-Nr. | Tolleranza ≤ | øA mm | øB mm | øC mm | øD mm | øE mm | F mm | N° fori | G mm | øH mm |
|---|---|---|---|---|---|---|---|---|---|---|
404305 | 0.010 | 80 | 60 | 35 | 67 | 7,0 | 55 | 3 | 2,5 | 56 |
404310 | 0.010 | 100 | 60 | 35 | 83 | 9,0 | 55 | 6 | 2,5 | 70 |
404320 | 0.011 | 160 | 60 | 35 | 140 | 11,0 | 55 | 6 | 3,5 | 125 |
404330 | 0.013 | 200 | 60 | 35 | 176 | 11,0 | 55 | 6 | 3,5 | 160 |
404340 | 0,015 | 250 | 60 | 35 | 224 | 13,0 | 55 | 6 | 4,5 | 200 |
