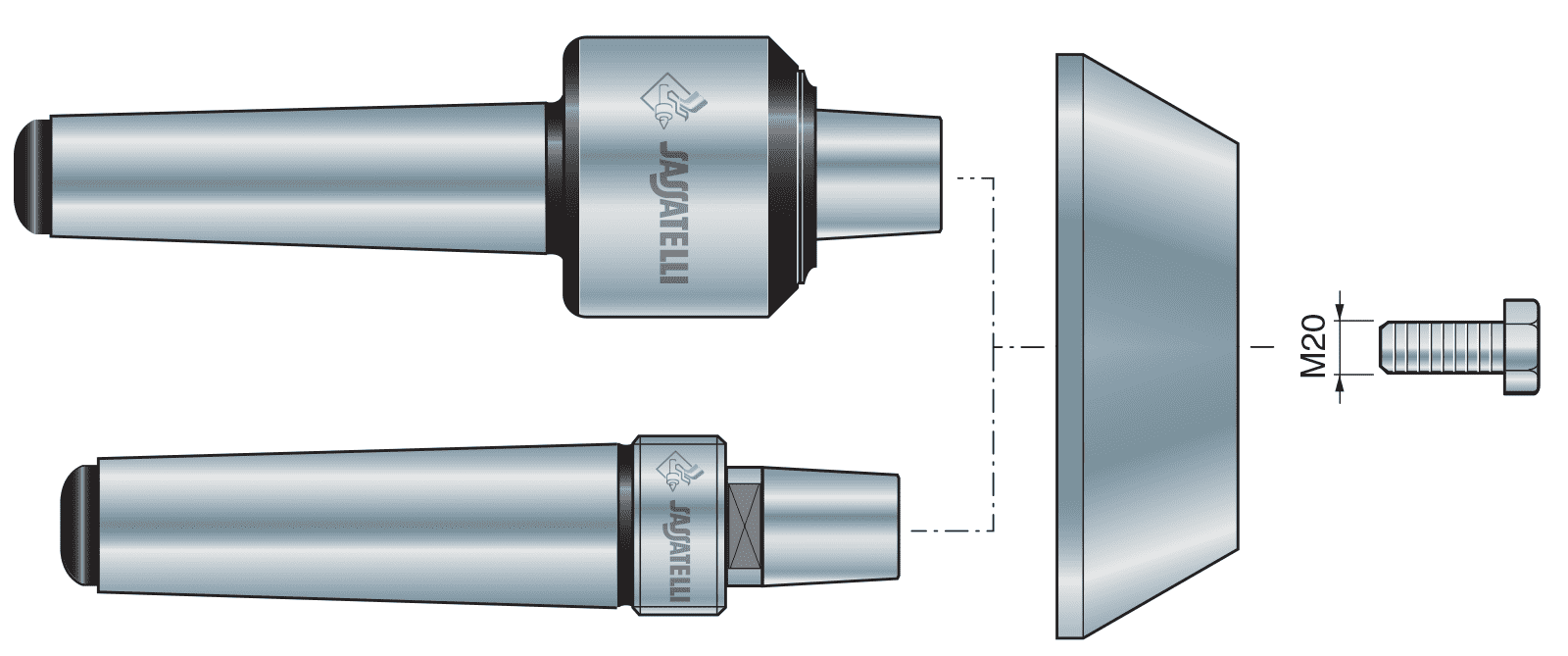

60° truncated cone heads, to be coupled to live or dead center with truncated cone. Anchoring by pressing of the head on the centre. For working pipes and hollow bodies from ø mm. 45 to ø mm. 600

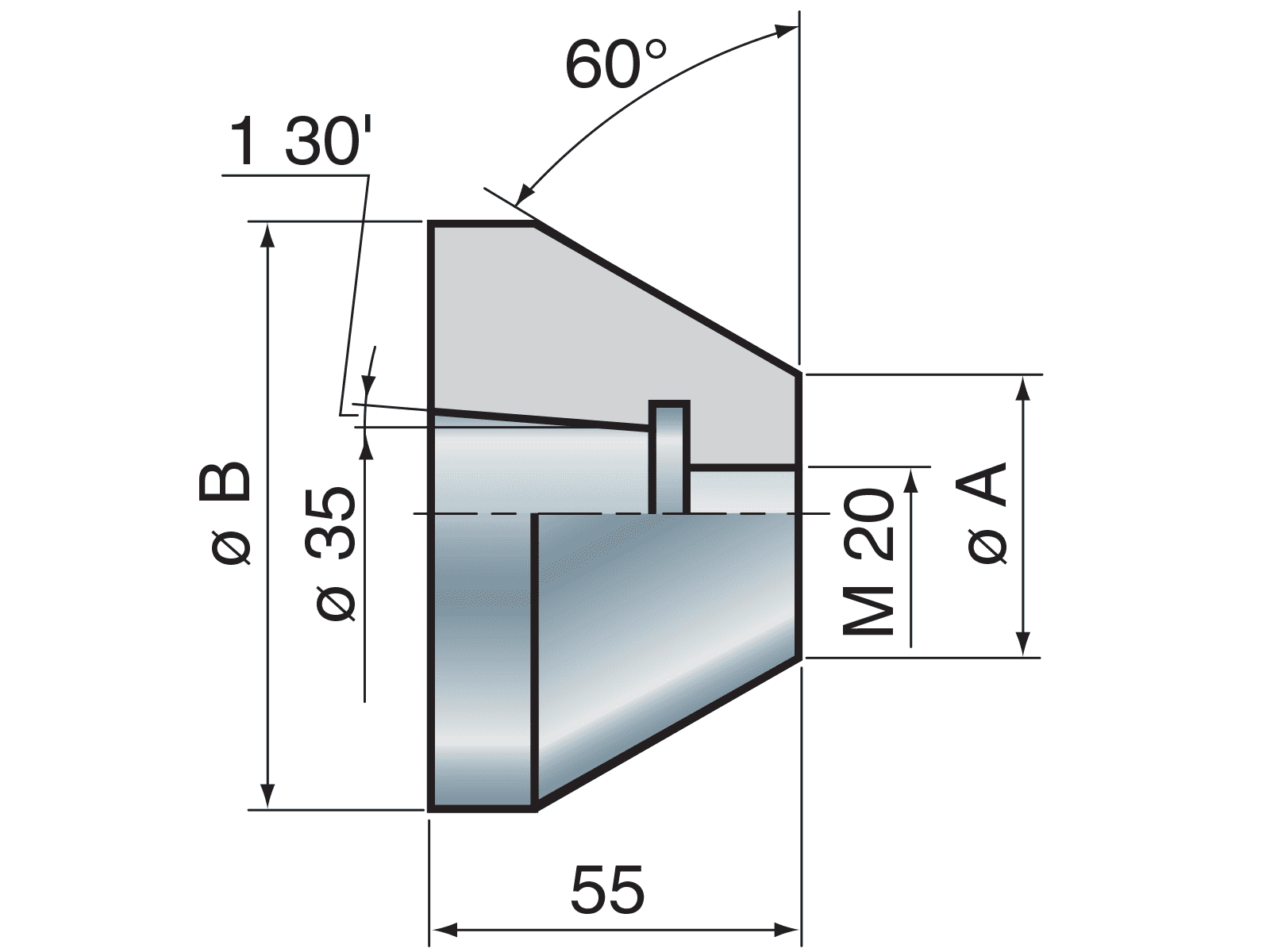

60° truncated cone heads for working pipes and hollow bodies from ø mm. 45 to ø mm. 600, to be coupled to truncated cone dead or live centres. Anchoring by pressing of the head on the centre.
Codice Code Id.-Nr. | Peso Kg | Tolleranza ≤ | øA mm | øB mm |
|---|---|---|---|---|
404200 | 1,8 | 0,006 | 45 | 98 |
404210 | 4,2 | 0,011 | 95 | 148 |
404220 | 7,4 | 0,014 | 145 | 198 |
404230 | 10,8 | 0,016 | 195 | 248 |
404240 | 15,2 | 0,018 | 245 | 298 |
404250 | 16,2 | 0,021 | 295 | 348 |
404260 | 25,0 | 0,026 | 345 | 398 |
404270 | 32,0 | 0,031 | 395 | 448 |
404280 | 39,6 | 0,042 | 445 | 498 |
404290 | 45,5 | 0,046 | 495 | 545 |
404300 | 52,7 | 0,050 | 545 | 600 |
