Mod. FIL MAS SN (Normal Set)

Series threaders Mod. FIL MAS SN

Production: Thread

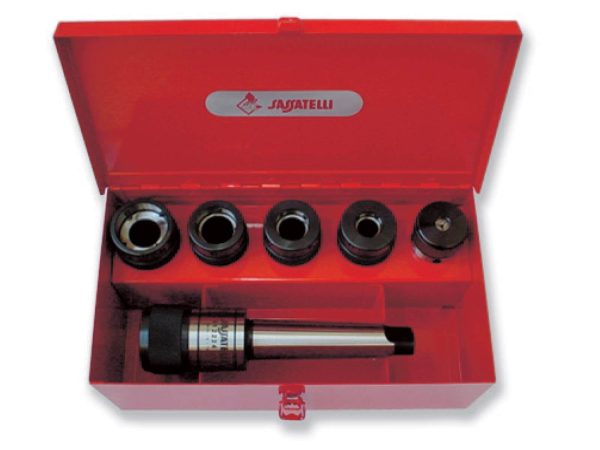

Thread cutting set with 5 Die holders bushes.

Go to technical data

Mod. FIL MAS SN (Normal Set)

Add product to list

Codice

Clear

Add to Quotation

Confezioni standard / Standard packing / Standardpackung

Codice Code Id.-Nr.	Cono Cone Kegel	Capacità Capacity Kapazität	L. filettatura Thread length Gewindelänge	Escursione max. Max. stroke Höchsthub
312002	2	M4 ÷ M22	145 mm	48 mm
312013	3	M4 ÷ M22	145 mm	48 mm
312024	4	M4 ÷ M22	145 mm	48 mm
312035	5	M4 ÷ M22	145 mm	48 mm

Accessori In Dotazione / Standard Accessories / Mitgeliefertes Zubehör

Codice Code Id.-Nr.	Bussola porta filiere Die holder bush Schneideisen-Hülse	Mandrini p. maschi Tap holder spindles Bohrerspindeln	Confezione Packing Verpackung	Peso Kg
312002	ø 20 301290	ø 4 ÷ 10 301270	Cassetta in metallo Metal box Metallkassette 301440	4,3
312013	ø 25 301300	ø 4 ÷ 10 301270	Cassetta in metallo Metal box Metallkassette 301440	4,5
312024	ø 30 301310	ø 4 ÷ 10 301270	Cassetta in metallo Metal box Metallkassette 301440	4,8
312035	ø 38 301320	ø 4 ÷ 10 301270	Cassetta in metallo Metal box Metallkassette 301440	5,5

Technical Data

General features of Series threaders Mod. FIL MAS SN

Codice / Code / Id.-Nr.	CM	L 1 mm	L 2 mm	Ø A mm	Kg
312202	2	75	80	52	0,7
312213	3	75	99	52	0,85
312224	4	75	124	52	1,15
312235	5	75	156	52	1,85

Diagrams

Accessories

Mod. 125 – Spindle holder tang

Mod. 127 – Tap receiver spindles

Mod. 129 – Die holder bushes

Mod. 142 – Bush receiver accessory for BN – BCF

Mod. 155 – Extension for long threads

Mod. PFC – Die holders for CNC with compensation
