The thread cutting devices of series FIL MAS SN can be perfectly used on lathes of any dimension having the accessories for radial sliding on balls. A perfect working is obtained eliminating imperfections caused by forced pull.
FIL MAS SN without clutch.
The accessories are interchangeable.
Codice / Code / Id.-Nr. | CM | L 1 mm | L 2 mm | Ø A mm | Kg |
|---|---|---|---|---|---|
312202 | 2 | 75 | 80 | 52 | 0,7 |
312213 | 3 | 75 | 99 | 52 | 0,85 |
312224 | 4 | 75 | 124 | 52 | 1,15 |
312235 | 5 | 75 | 156 | 52 | 1,85 |

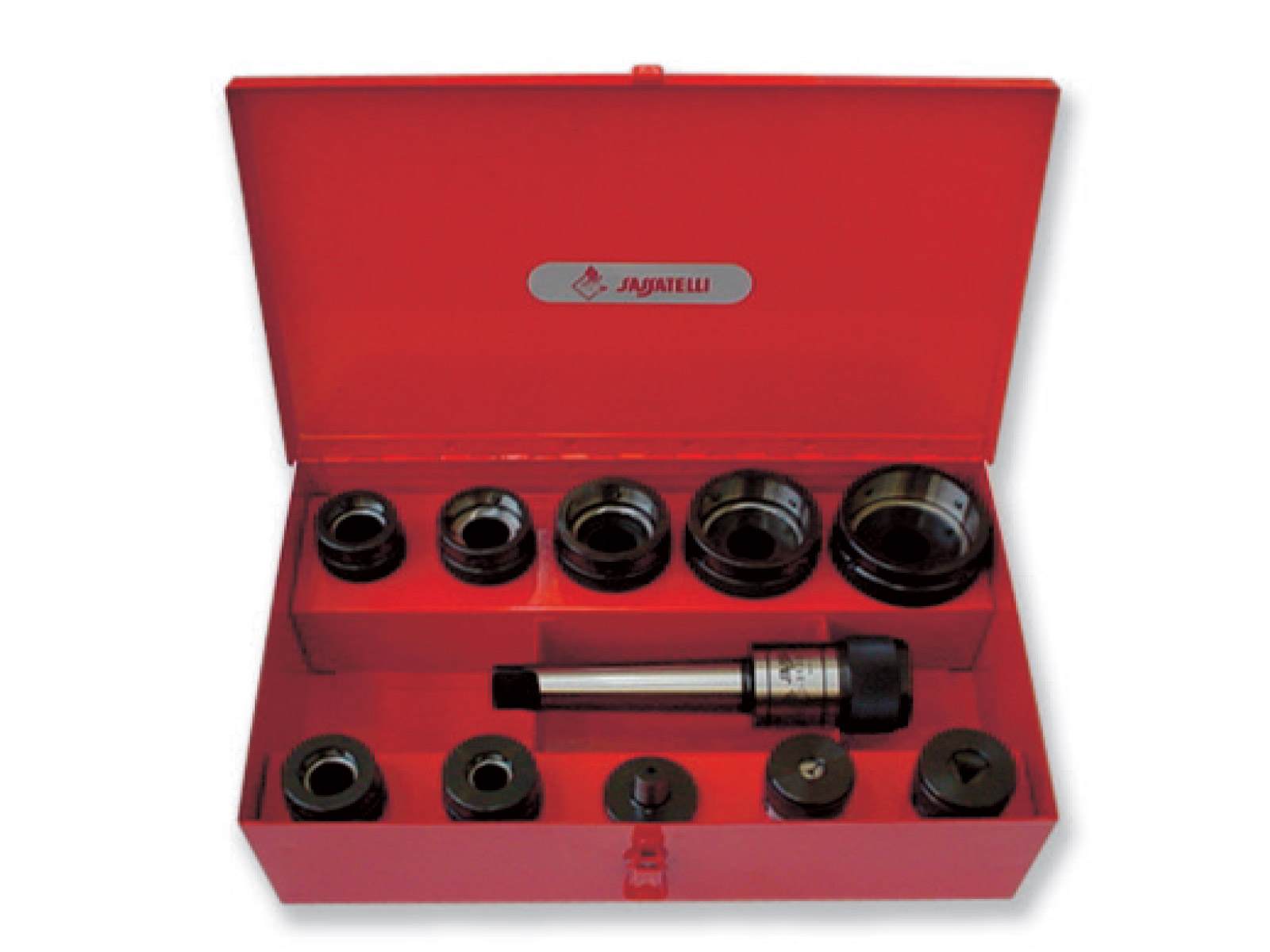

Thread cutting set with 5 Die holders bushes, tap receiver spindles and spindle holder tang.
Codice / Code / Id.-Nr. | Cono Cone Kegel | Capacità Capacity Kapazität | L. filettatura Thread length Gewindelänge | Escursione max. Max. stroke Höchsthub |
|---|---|---|---|---|
312102 | 2 | M4 ÷ M22 | 145 mm | 48 mm |
312113 | 3 | M4 ÷ M22 | 145 mm | 48 mm |
312124 | 4 | M4 ÷ M22 | 145 mm | 48 mm |
312135 | 5 | M4 ÷ M22 | 145 mm | 48 mm |
Codice / Code / Id.-Nr. | Bussola porta filiere Die holder bush Schneideisen-Hülse | Mandrini p. maschi Tap holder spindles Bohrerspindeln | Confezione Packing Verpackung | Peso Kg |
|---|---|---|---|---|
312102 | ø 20 301290 ø 25 301300 ø 30 301310 ø 38 301320 ø 45 301330 ø 55 301340 ø 65 301350 | ø 4 ÷ 10 301270 ø 10 ÷ 18 301280 | Cassetta in metallo Metal box Metallkassette 301450 | 9,5 |
312113 | ø 20 301290 ø 25 301300 ø 30 301310 ø 38 301320 ø 45 301330 ø 55 301340 ø 65 301350 | ø 4 ÷ 10 301270 ø 10 ÷ 18 301280 | Cassetta in metallo Metal box Metallkassette 301450 | 9,7 |
312124 | ø 20 301290 ø 25 301300 ø 30 301310 ø 38 301320 ø 45 301330 ø 55 301340 ø 65 301350 | Codolo/Tang/Stummel B16 301251 | Cassetta in metallo Metal box Metallkassette 301450 | 10 |
312135 | ø 20 301290 ø 25 301300 ø 30 301310 ø 38 301320 ø 45 301330 ø 55 301340 ø 65 301350 | Codolo/Tang/Stummel B16 301251 | Cassetta in metallo Metal box Metallkassette 301450 | 11 |

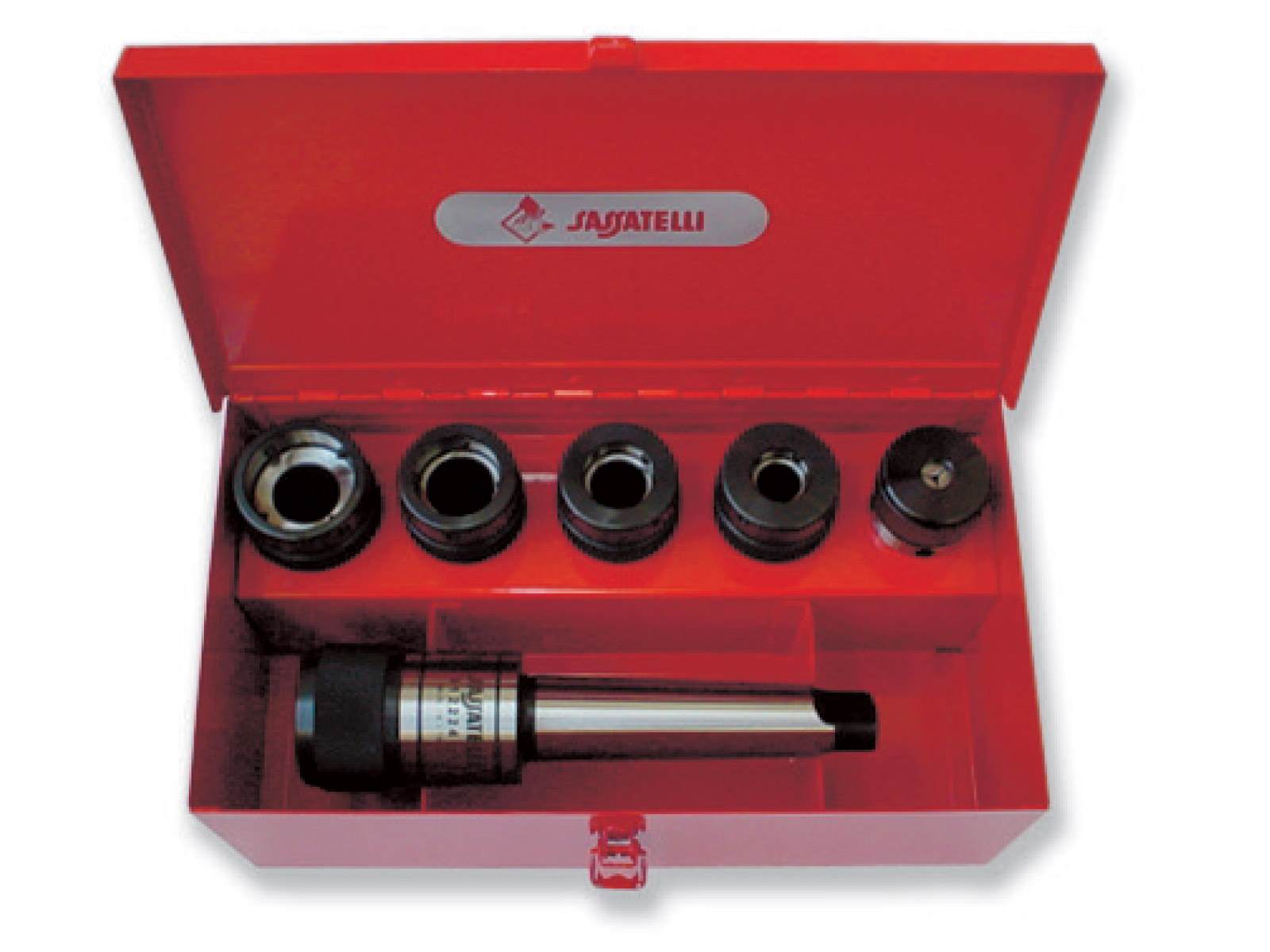

Thread cutting set with 5 Die holders bushes.
Codice / Code / Id.-Nr. | Cono Cone Kegel | Capacità Capacity Kapazität | L. filettatura Thread length Gewindelänge | Escursione max. Max. stroke Höchsthub |
|---|---|---|---|---|
312002 | 2 | M4 ÷ M22 | 145 mm | 48 mm |
312013 | 3 | M4 ÷ M22 | 145 mm | 48 mm |
312024 | 4 | M4 ÷ M22 | 145 mm | 48 mm |
312035 | 5 | M4 ÷ M22 | 145 mm | 48 mm |
Codice / Code / Id.-Nr. | Bussola porta filiere Die holder bush Schneideisen-Hülse | Mandrini p. maschi Tap holder spindles Bohrerspindeln | Confezione Packing Verpackung | Peso Kg |
|---|---|---|---|---|
312002 | ø 20 301290 | ø 4 ÷ 10 301270 | Cassetta in metallo Metal box Metallkassette 301440 | 4,3 |
312013 | ø 25 301300 | ø 4 ÷ 10 301270 | Cassetta in metallo Metal box Metallkassette 301440 | 4,5 |
312024 | ø 30 301310 | ø 4 ÷ 10 301270 | Cassetta in metallo Metal box Metallkassette 301440 | 4,8 |
312035 | ø 38 301320 | ø 4 ÷ 10 301270 | Cassetta in metallo Metal box Metallkassette 301440 | 5,5 |
