Spare parts interchangeable tips

General features

Interchangeable 60° tips for all models of live center and dead center with interchangeable attachments.

KEY NOT INCLUDED

Product List

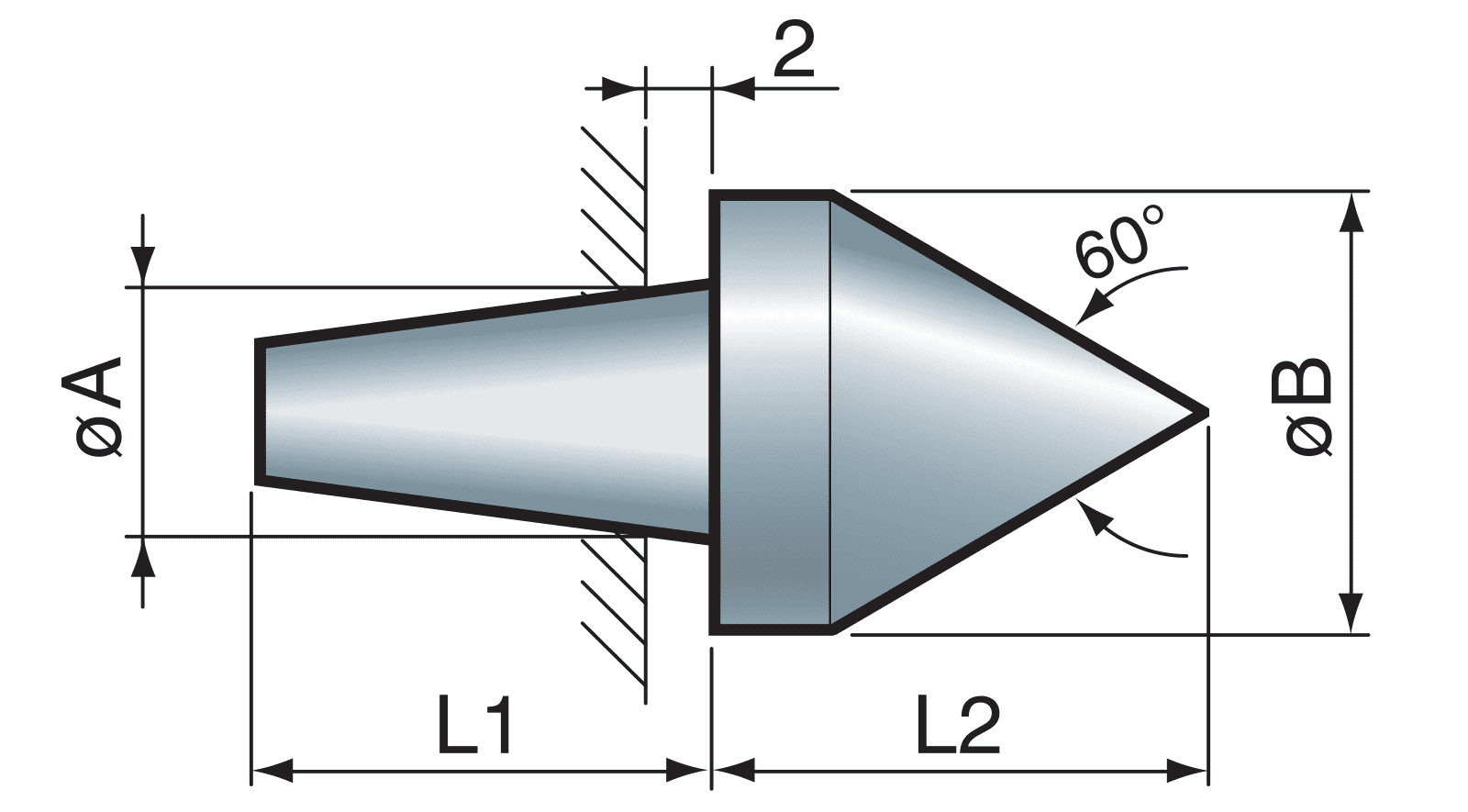

Mod. 30

60° interchangeable tips for all models of live and dead centres with interchangeable connector.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
Ø A mm
Ø B mm
803030
C 2
27
30
13,458
27
803030
C 3
27
30
13,458
27
803040
C 4
29
31
15,461
29
803050
C 5
30
36
20,425
35
803060
C 6
33
45
23,069
42
803060F
C 6 sp
40
46
28,113
43
View

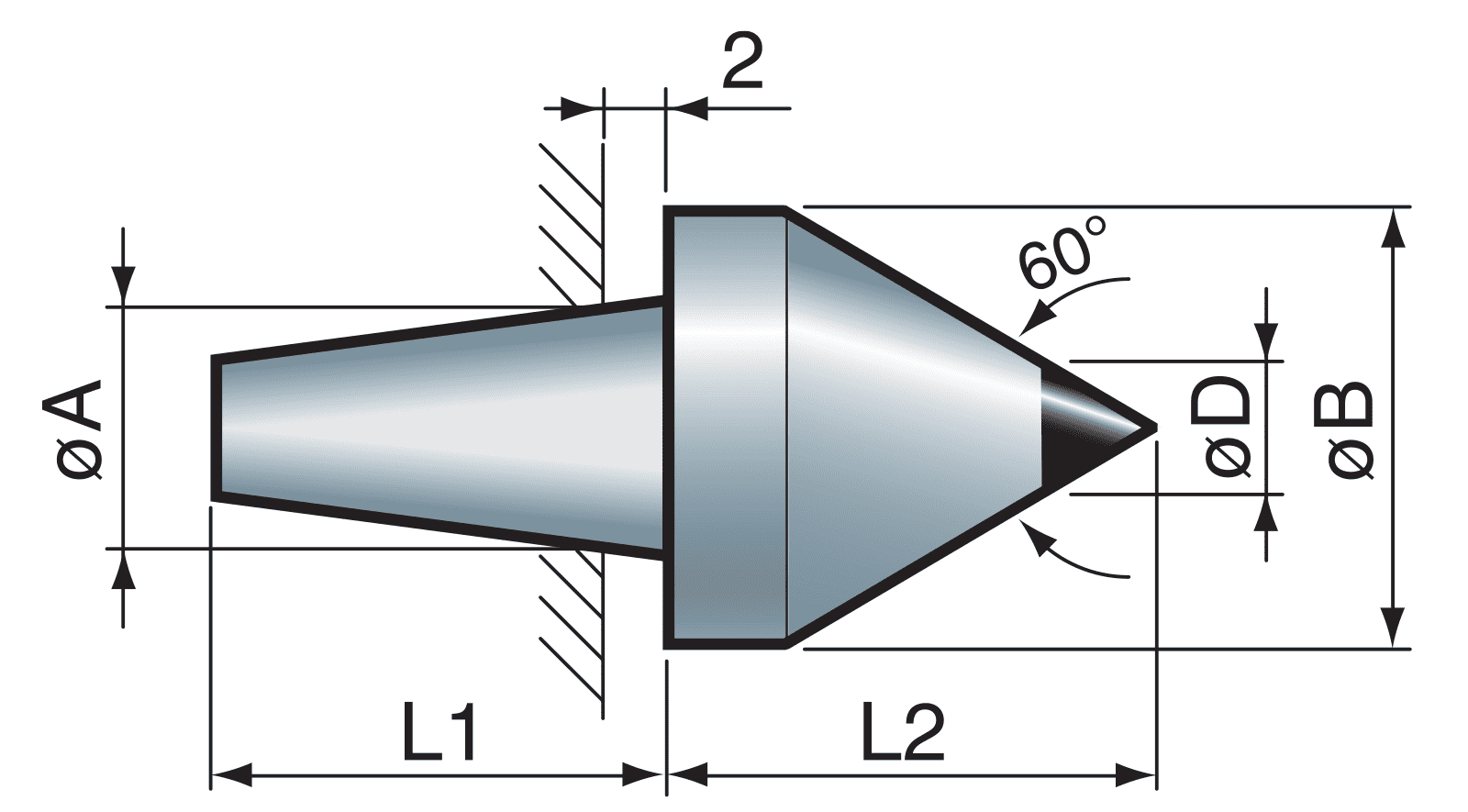

Mod. 31/MD

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
Ø A mm
Ø B mm
Ø D mm
803130
C 2
27
30
13,458
27
10
803130
C 3
27
30
13,458
27
10
803140
C 4
29
31
15,461
29
12
803150
C 5
30
36
20,425
35
14
803160
C 6
33
45
23,069
42
14
803160F
C 6 sp
40
46
28,113
43
14
View

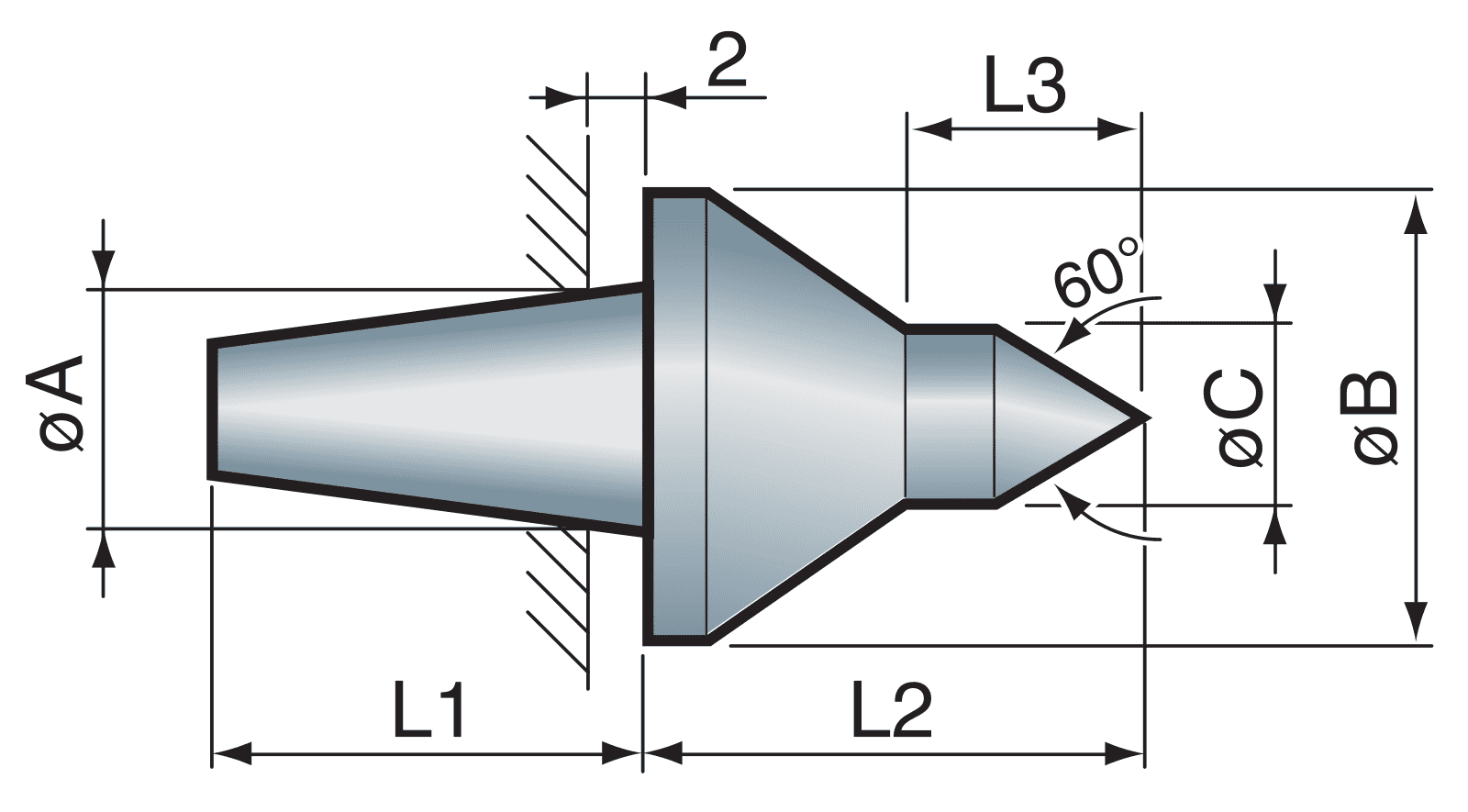

Mod. 40 A

60° interchangeable tips

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
L 3 mm
Ø A mm
Ø B mm
Ø C mm
804013
C 2
27
34
16
13,458
25
12
804013
C 3
27
34
16
13,458
25
12
804014
C 4
29
37
16
15,461
29
12
804015
C 5
30
42
19
20,425
35
15
804016
C 6
33
54
25
23,069
42
20
804016F
C 6 sp
40
62
34
28,113
43
20
View

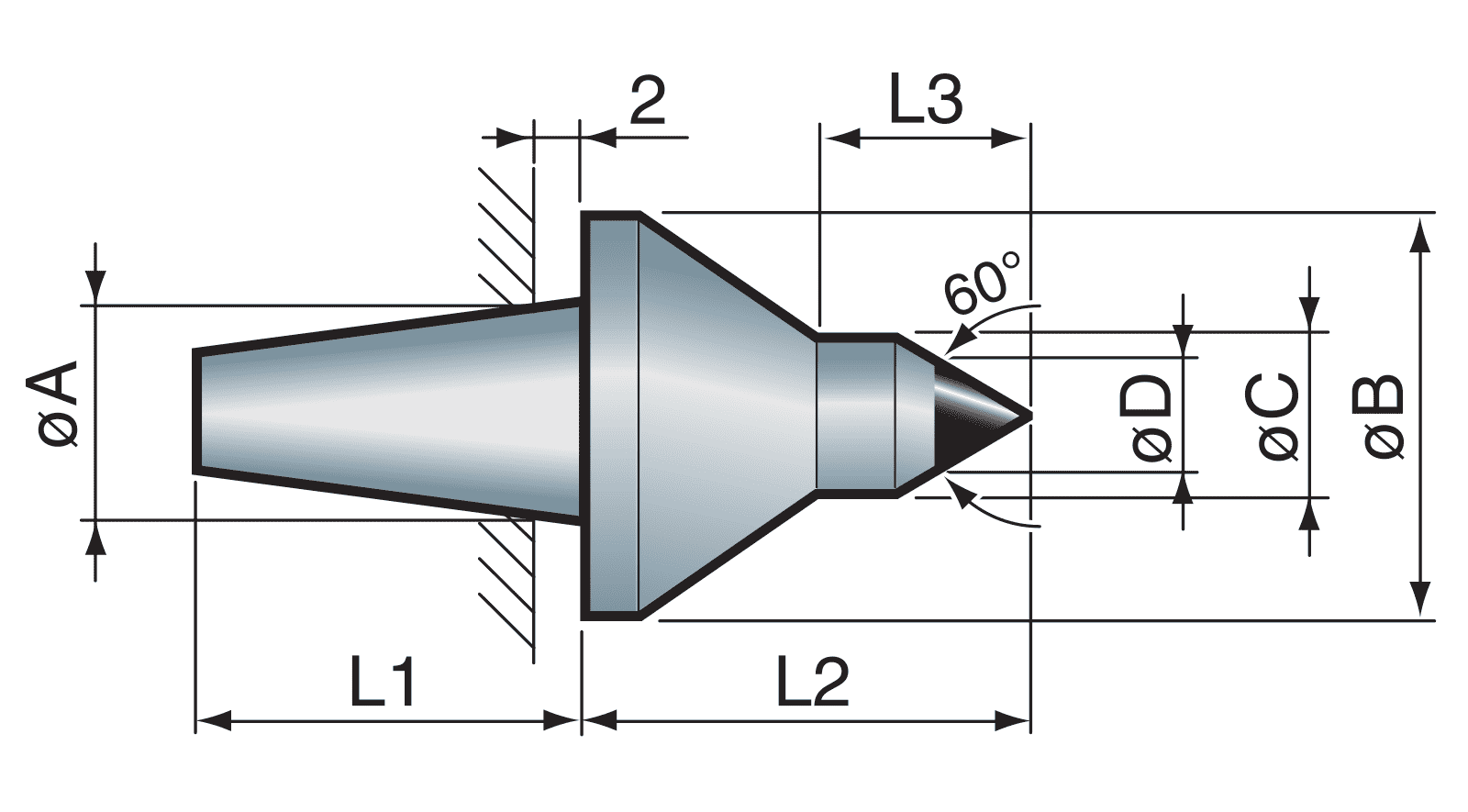

Mod. 41 A/MD

Interchangeable extended carbide headstock.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
L 3 mm
Ø A mm
Ø B mm
Ø C mm
Ø D mm
804113
C 2
27
34
16
13,458
25
12
7
804113
C 3
27
34
16
13,458
25
12
7
804114
C 4
29
37
17
15,461
29
12
8
804115
C 5
30
42
19
20,425
35
15
12
804116
C 6
33
54
25
23,069
42
20
12
804116F
C 6 sp
40
62
34
28,113
43
20
12
View

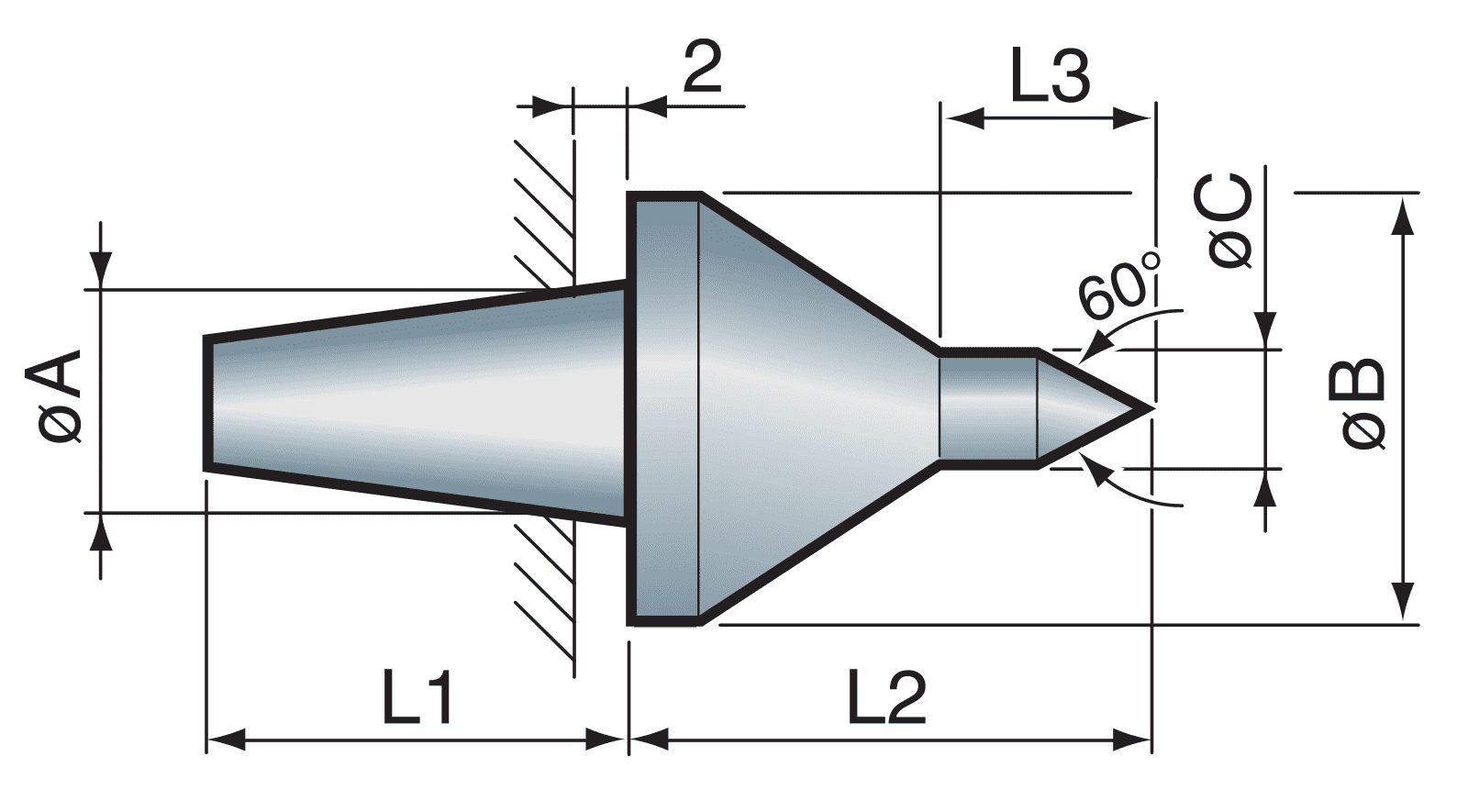

Mod. 40 B

Interchangeable extended cusp for small diameters.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
L 3 mm
Ø A mm
Ø B mm
Ø C mm
804023
C 2
27
34
12
13,458
25
7
804023
C 3
27
34
12
13,458
25
7
804024
C 4
29
37
12
15,461
29
7
804025
C 5
30
42
12
20,425
35
7
804026
C 6
33
54
18
23,069
42
12
804026F
C 6 sp
40
62
26
28,113
43
12
View

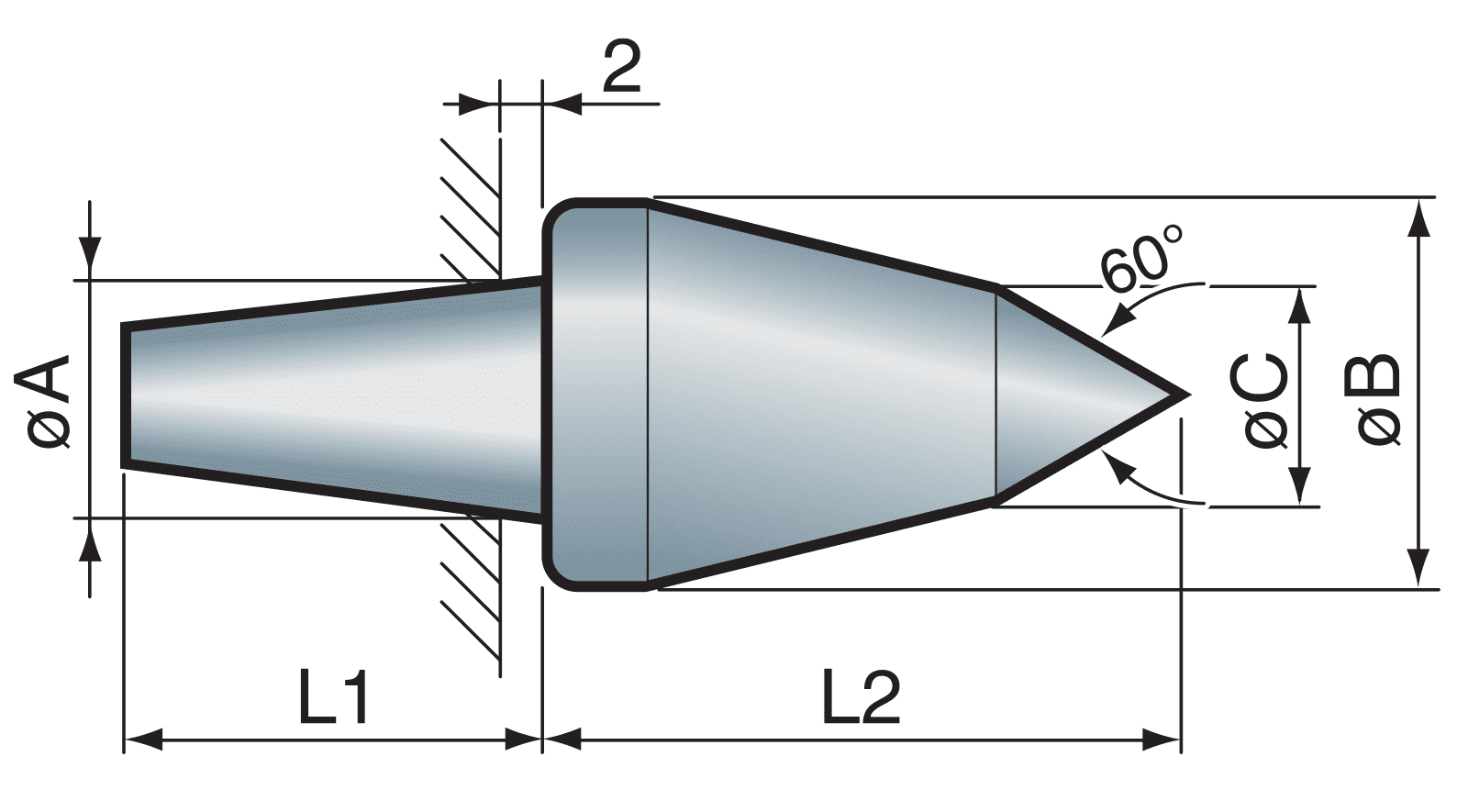

Mod. 42

Interchangeable extended cusp with double tilt.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
Ø A mm
Ø B mm
Ø C mm
804230
C 2
27
45
13,458
25
8
804230
C 3
27
45
13,458
25
8
804240
C 4
29
50
15,461
29
10
804250
C 5
30
59
20,425
35
12
804260
C 6
33
75
23,069
42
12
804260F
C 6 sp
40
75
28,113
43
12
View

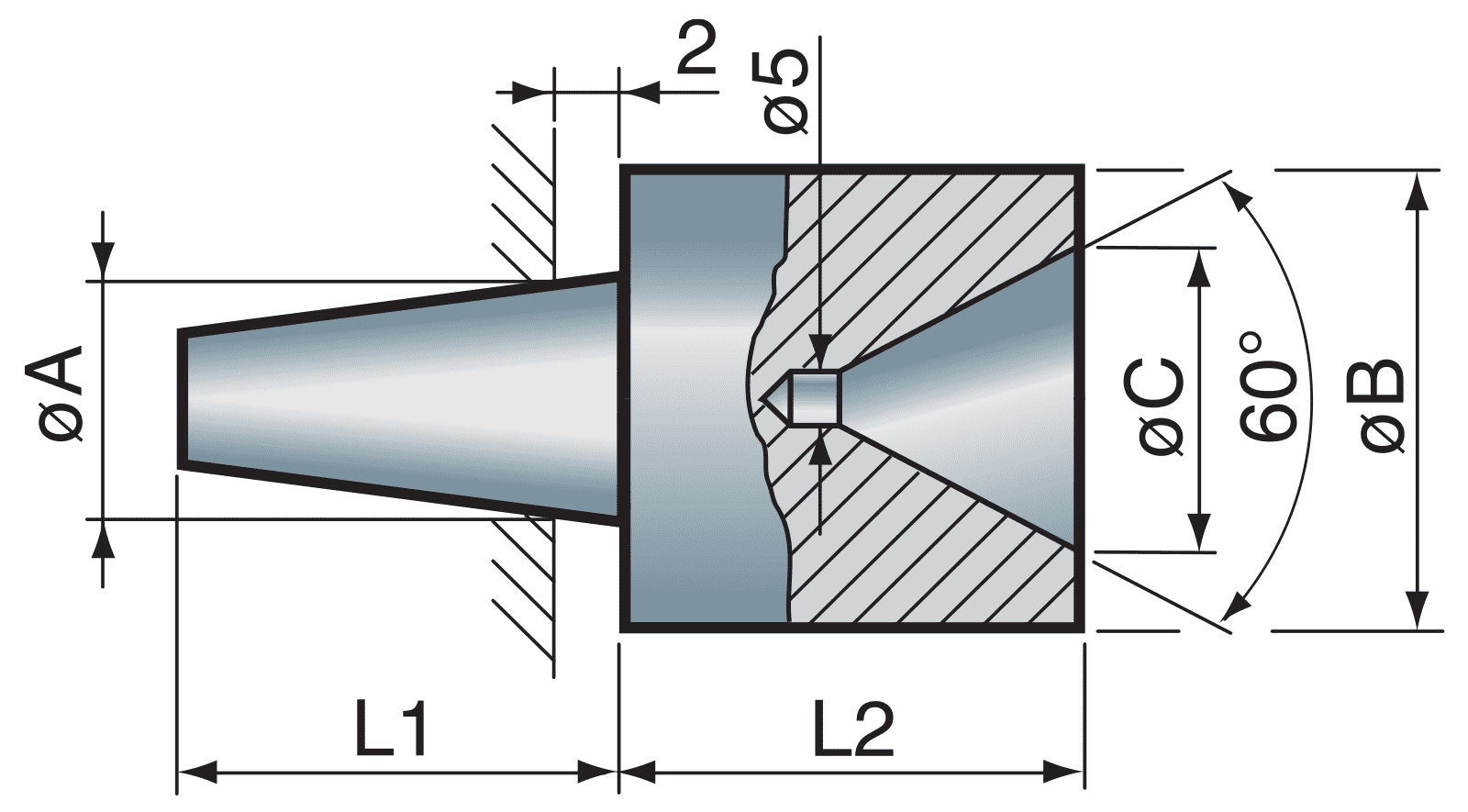

Mod. 50

Female interchangeable cusp with 60° interior.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
Ø A mm
Ø B mm
Ø C mm
805030
C 2
27
30
13,458
29
23
805030
C 3
27
30
13,458
29
23
805040
C 4
29
30
15,461
29
23
805050
C 5
30
35
20,425
35
27
805060
C 6
33
35
23,069
37
27
805060F
C 6 sp
40
46
28,113
37
27
View

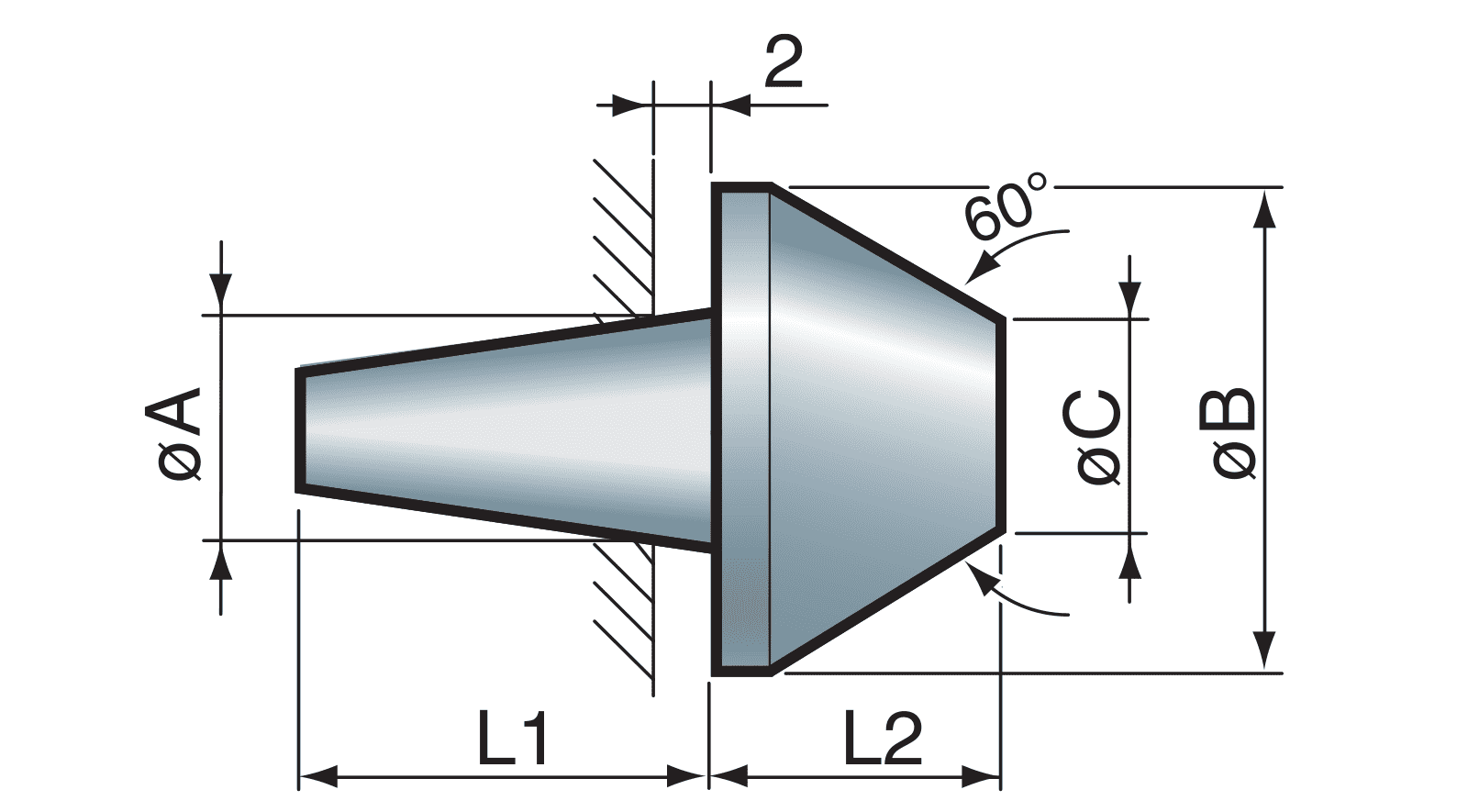

Mod. 60

Interchangeable pipe spike.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
Ø A mm
Ø B mm
Ø C mm
806030
C 2
27
35
13,458
59
26
806030
C 3
27
35
13,458
59
26
806040
C 4
29
35
15,461
59
26
806050
C 5
30
35
20,425
59
26
806060
C 6
33
35
23,069
59
26
806060 F
C 6 sp
40
35
28,113
59
26
View

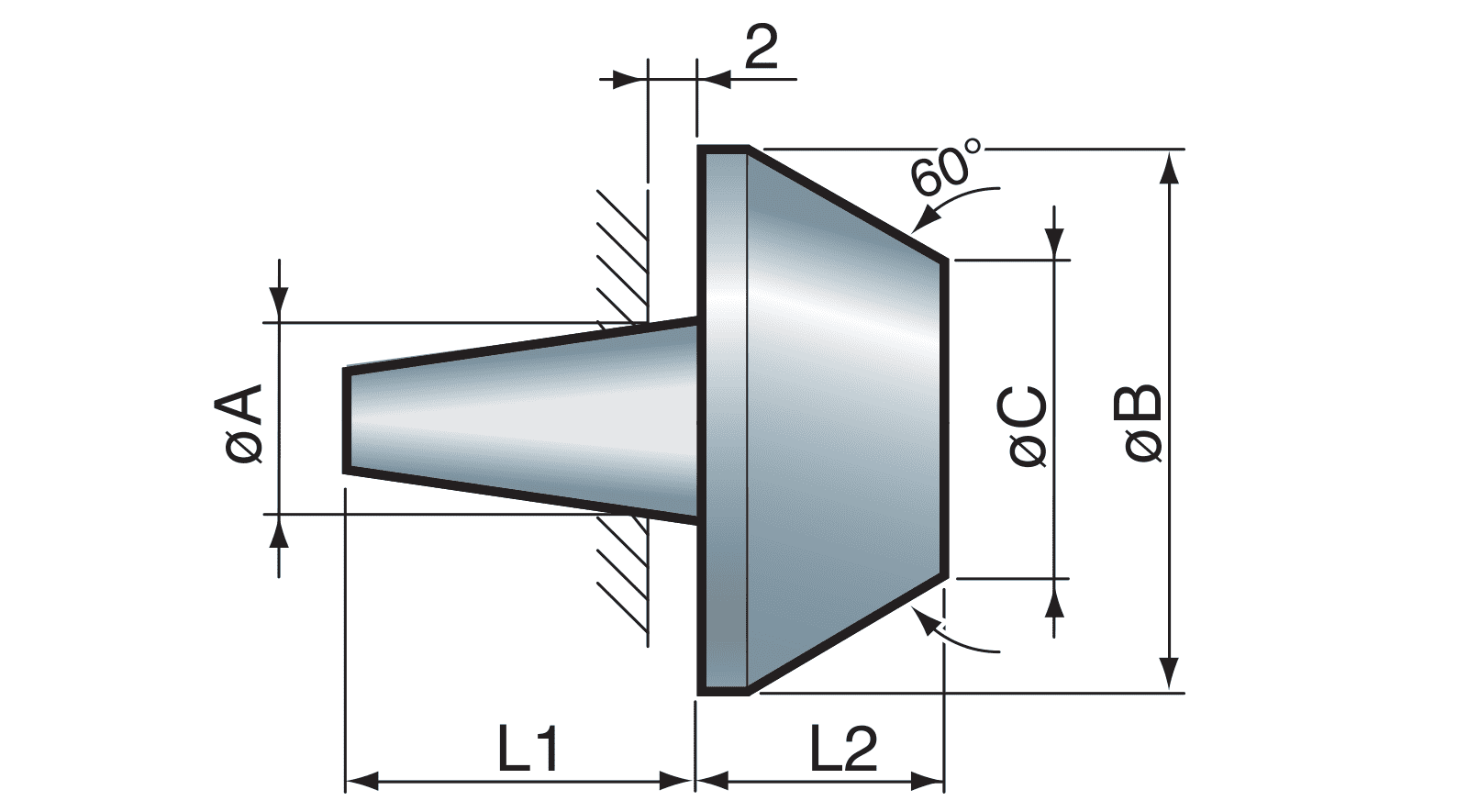

Mod. 80

Interchangeable spike for medium-sized pipes.

Codice / Code / Id.-Nr.
Cono
Cone / Kegel
L 1 mm
L 2 mm
Ø A mm
Ø B mm
Ø C mm
808030
2
27
35
13.458
78
46
808030
3
27
35
13,458
78
46
808040
4
29
35
15,461
78
46
808050
5
30
35
20,425
78
46
808060
6
33
35
23,069
78
46
808060F
6 sp
40
35
28,113
78
46
View

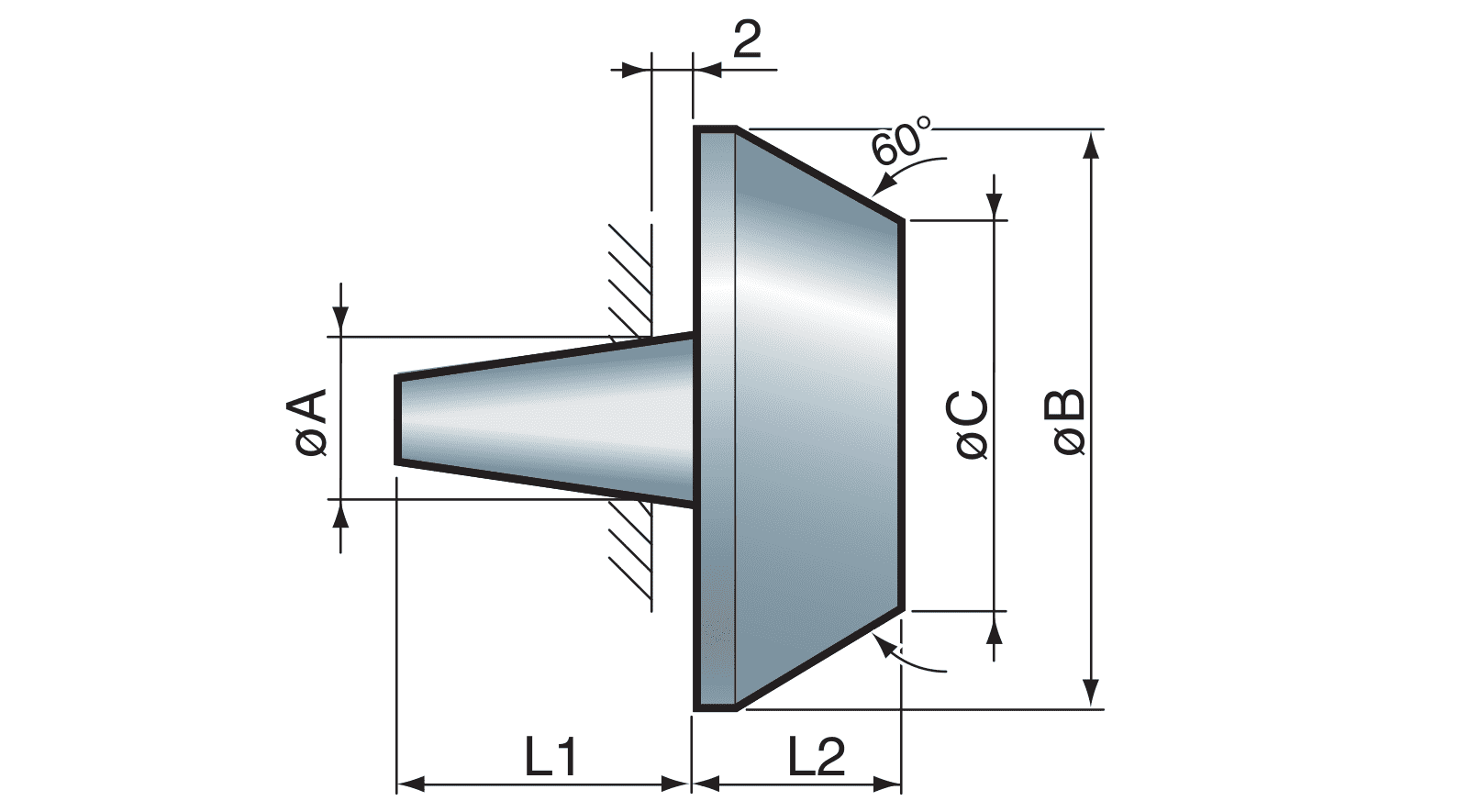

Mod. 100

Interchangeable cusps for large pipes.

Codice / Code / Id.-Nr.
CM
L 1 mm
L 2 mm
Ø A mm
Ø B mm
Ø C mm
801003
C 2
27
35
13,458
98
66
801003
C 3
27
35
13,458
98
66
801004
C 4
29
35
15,461
98
66
801005
C 5
30
35
20,425
98
66
801006
C 6
33
35
23,069
98
66
801006F
C 6 sp
40
35
28,113
98
66
View
